Product name:Ceramic Eyelet
Product ID:701

Description

Alumina Textile ceramic eyelet guides (Ceramic ring ) and zirconia ceramic eyelet are applied  to the coiling machine and spinning and weaving machinery, it is in common use fault silk another piece , is used to demand no high fault silk occasion. Silk thread slides when the job, in china eye outside, for reducing friction, must raise material hardness , smoothness and form. Our company selects and uses 99%'s Al2O3 , hardness greater than HRa88 , density 3.85, surpasses essence throwing Ra0.2.

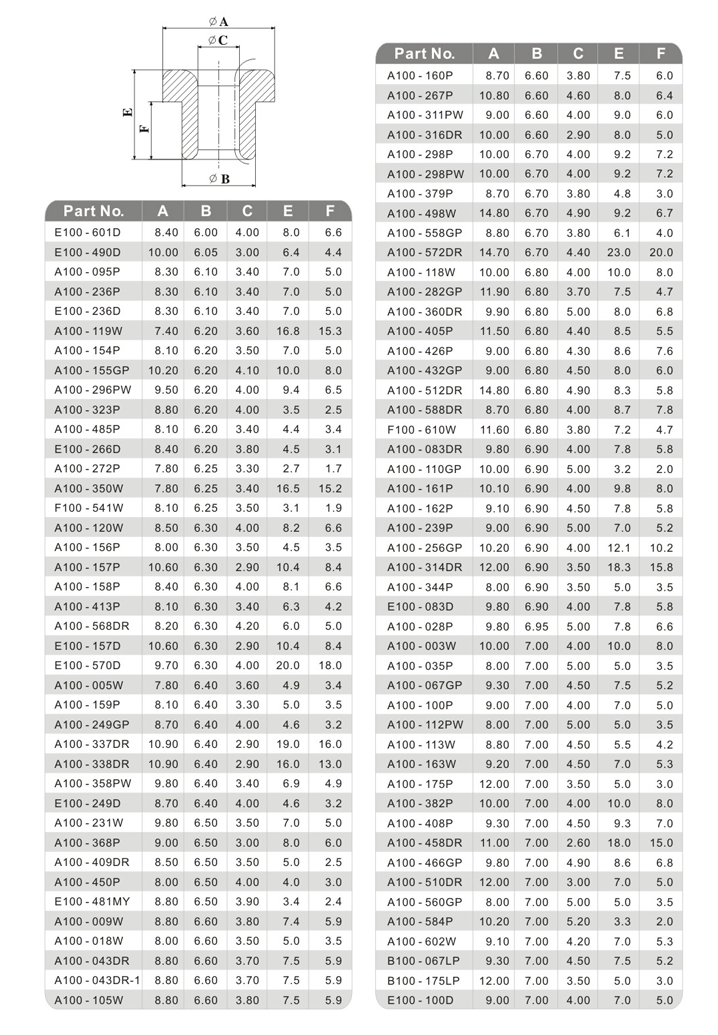

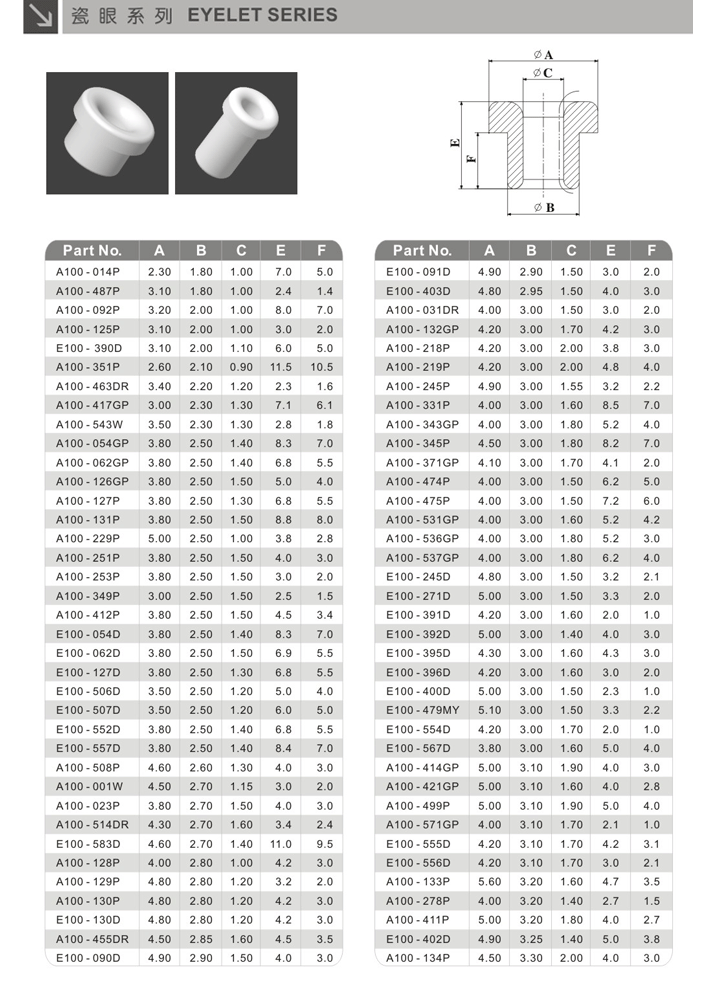

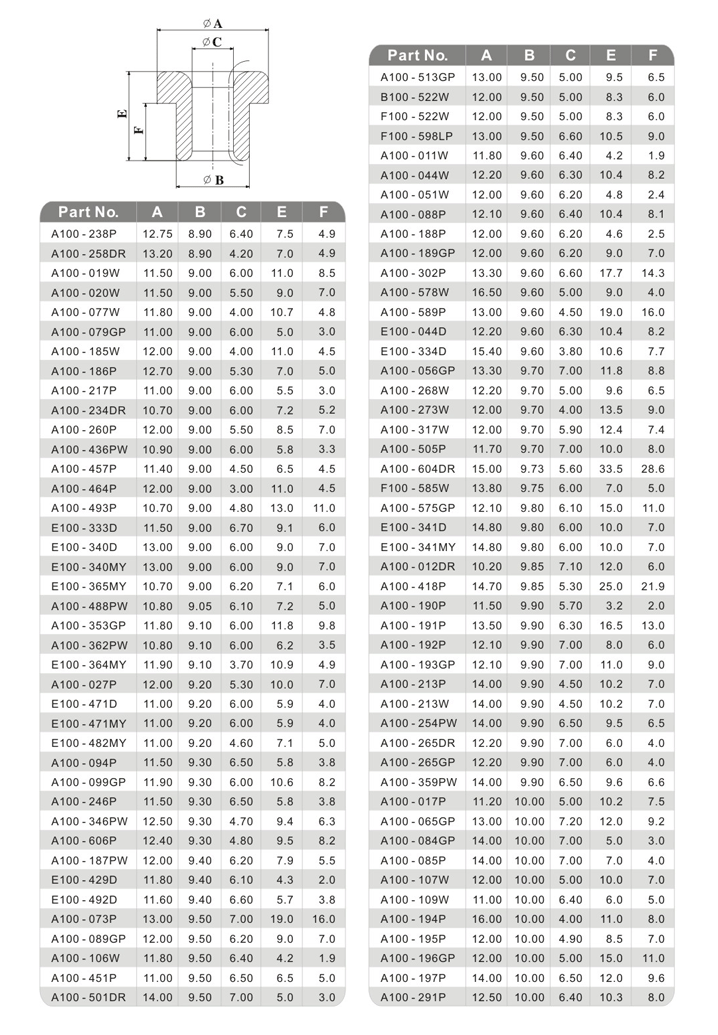

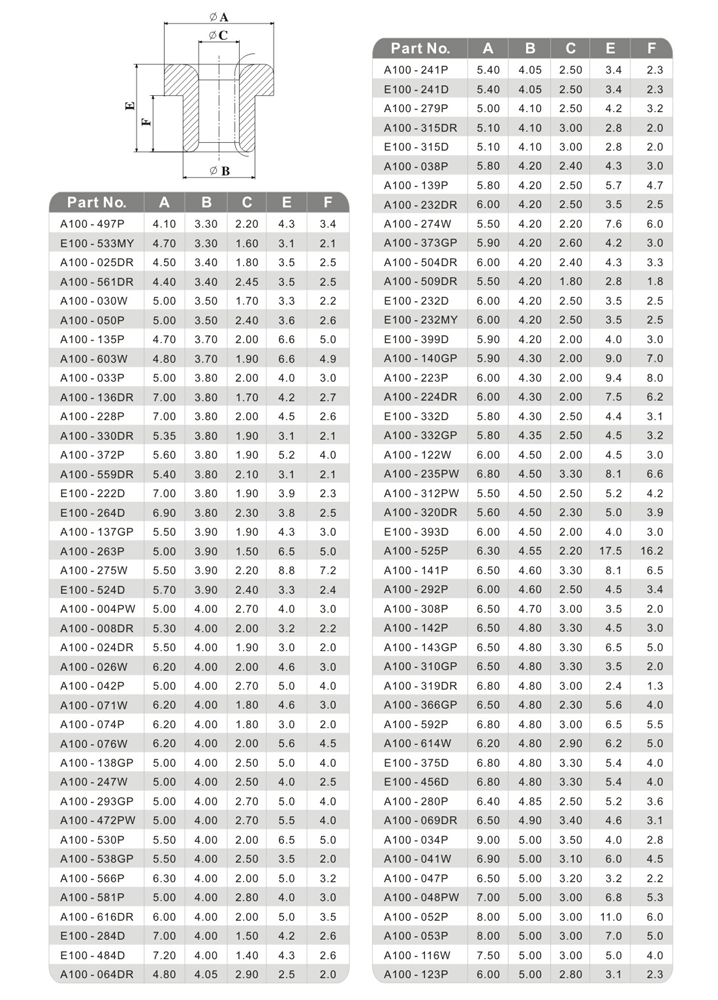

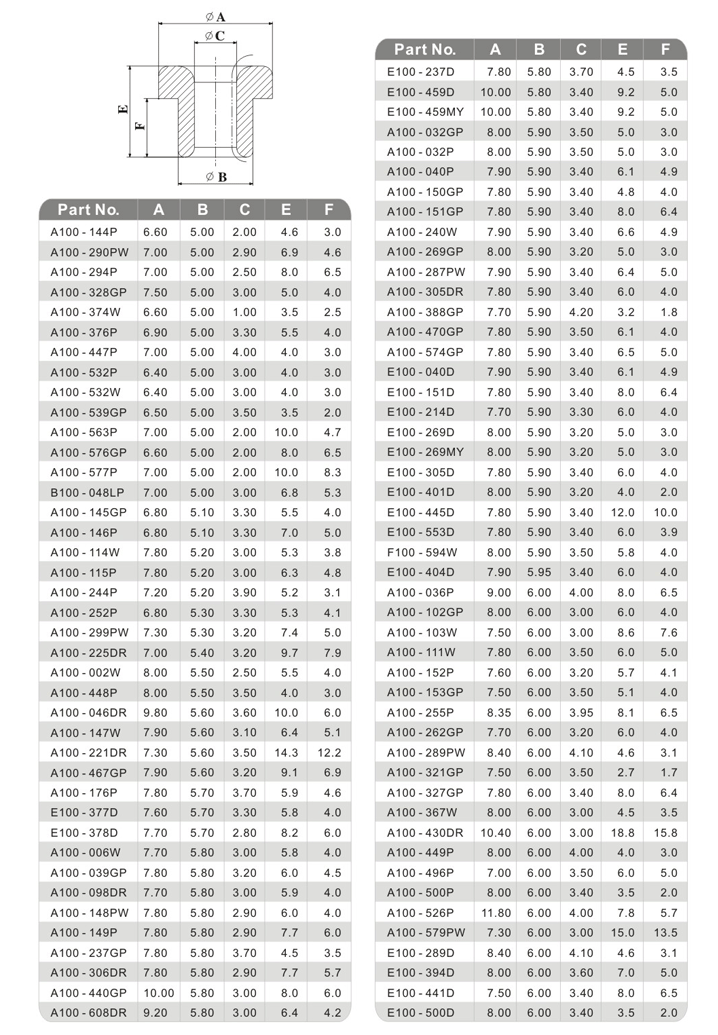

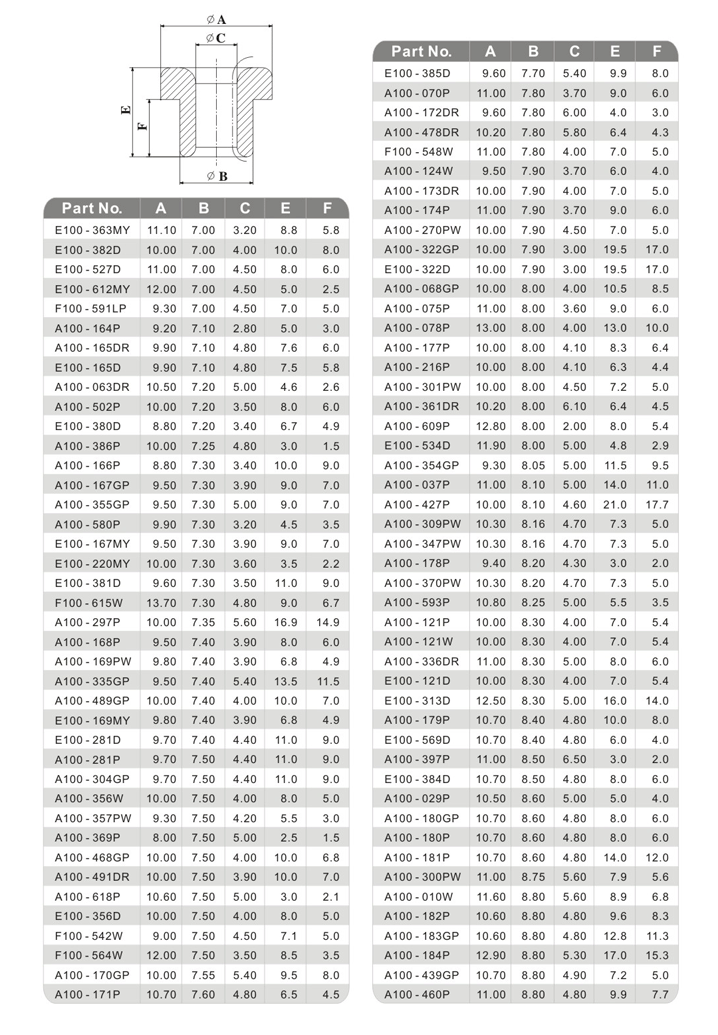

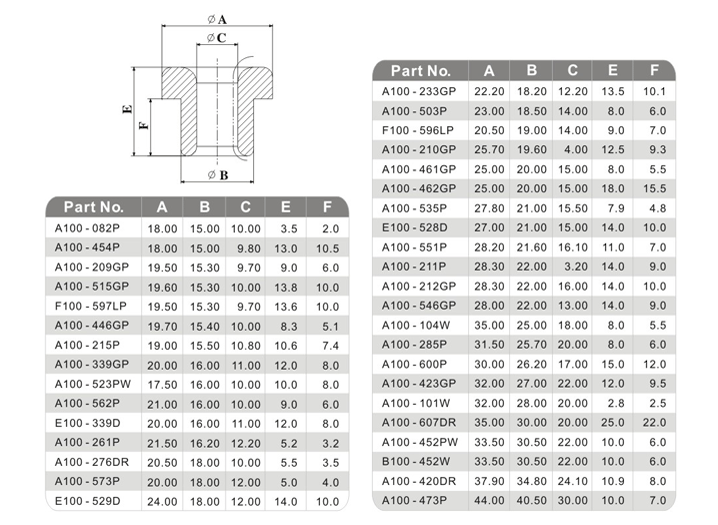

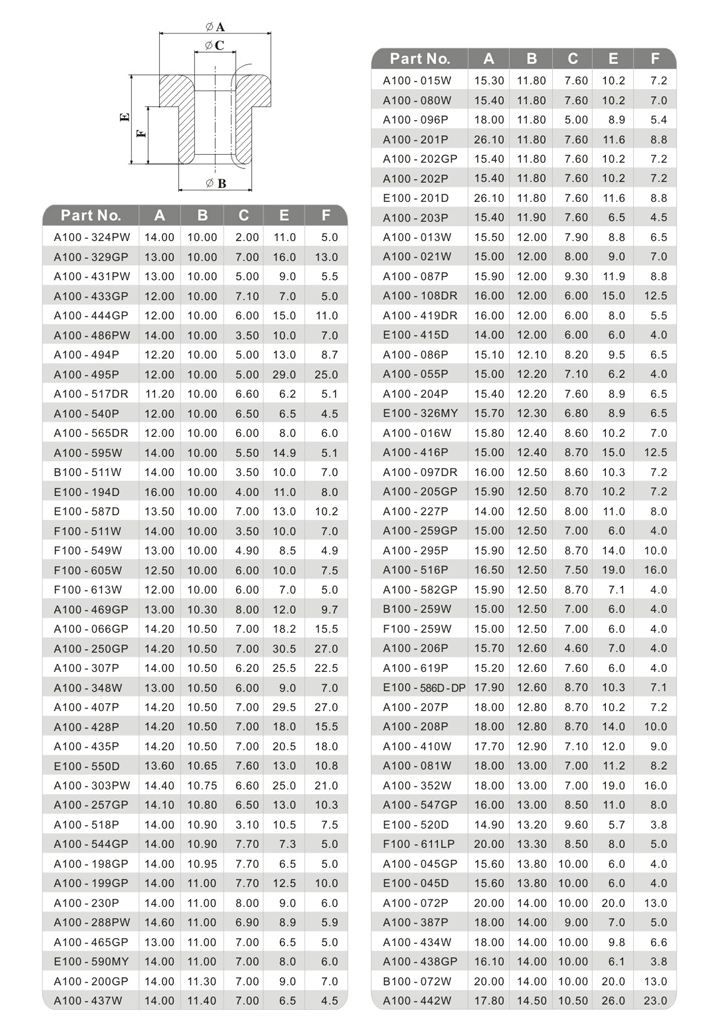

The alumia ceramic (Textile ceramic eyelet) Zirconia ceramic eyelet  is used to set less (friction is also less) location of pressure right. For cost reduction , according to using a request, smoothness polishing handicraft is allotted being (0.8 throw Ra) roughly , is throw (Ra accurate 0.4), surpasses essence throwing (Ra0.2). Be that single face is super-accurate at the same time mark throw and two-sided super-accurate throw. Specification of china eye many, select and use specification listing in common use in sopport a customer the day afer tomorrow now, also may demand making to order according to the customer.
